[Tech Breakdown] Hardware-Assisted Storage Virtualization Vs. Native Bare-Metal Hardware Encryption

Modern enterprise data centers face a continuous balancing act: maintaining maximum I/O performance while ensuring bulletproof data security. As compliance mandates tighten, encrypting data-at-rest is no longer optional.

Two primary architectural approaches dominate this space: Hardware-Assisted Storage Virtualization and Native Bare-Metal Hardware Encryption.

While both methods secure enterprise data, they operate at different layers of the infrastructure stack and introduce distinct trade-offs in performance, scalability, and management complexity. This technical breakdown compares these two approaches to help you choose the right architecture for your workload.

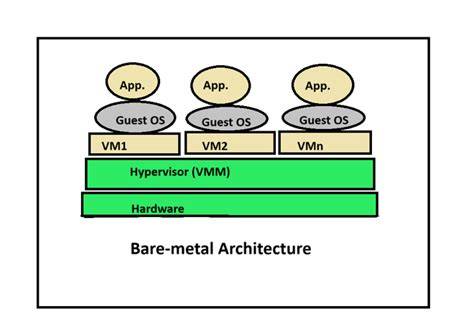

Understanding Hardware-Assisted Storage Virtualization

+---------------------------------------------------------+
|                  Virtual Machines / VMs                 |
+---------------------------------------------------------+
|  Hypervisor / Storage Virtualization Layer (with DPU)   | <-- Encryption & Abstraction
+---------------------------------------------------------+
|                 Physical Storage Pools                  |
+---------------------------------------------------------+

What is it and How Does it Work?

Hardware-assisted storage virtualization abstracts physical storage hardware into flexible, software-defined pools. This abstraction layer is typically managed by a hypervisor (such as VMware ESXi or KVM) or a dedicated storage controller.

To prevent the CPU overhead traditionally associated with software-defined storage, this architecture uses hardware offloading. Specialized hardware components—such as Data Processing Units (DPUs), SmartNICs, or CPU-specific instruction sets (like Intel QuickAssist Technology (QAT))—handle tasks like cryptographic processing, compression, and deduplication.

Key Benefits

Centralized Management: Encryption policies, storage provisioning, and snapshots are managed from a single control plane, regardless of the underlying physical drive brands.
Storage Efficiency: Features like thin provisioning, deduplication, and compression can be applied globally across the entire virtualized storage pool.
Hardware Independence: You can mix and match SSDs and HDDs from different vendors without worrying about individual drive-level encryption compatibility.

Potential Drawbacks

Hypervisor Latency: Even with hardware offloading, data must traverse the virtualization stack, which introduces minor latency compared to direct-to-disk writes.
Complex Threat Model: Because encryption keys and cryptographic operations occur at the virtualization layer, a compromised hypervisor could expose the entire storage pool.

Understanding Native Bare-Metal Hardware Encryption

+---------------------------------------------------------+
|                 Bare-Metal OS / Database                |
+---------------------------------------------------------+
|               PCIe / NVMe Controller                    |
+---------------------------------------------------------+
|  Self-Encrypting Drive (SED) with ASIC / TCG Opal       | <-- Encryption on Disk
+---------------------------------------------------------+

What is it and How Does it Work?

Native bare-metal hardware encryption secures data directly on the physical storage media. This architecture relies on Self-Encrypting Drives (SEDs) compliant with industry standards like the Trusted Computing Group (TCG) Opal or enterprise storage controller cards with built-in cryptographic chips.

In this model, encryption keys are generated and stored directly on the drive's onboard controller. Cryptographic operations (typically AES-256) are executed by an Application-Specific Integrated Circuit (ASIC) inside the drive itself as data is written to the flash memory or magnetic platters.

Key Benefits

Near-Zero Performance Overhead: Because encryption happens at the drive controller level, host CPU cycles and system memory are completely unaffected.
Maximum I/O Throughput: Ideal for ultra-low latency workloads, such as high-frequency trading databases or real-time analytics.
Isolated Security Boundary: Keys are kept on the physical drive. If a drive is physically stolen or retired, it cannot be read without the authentication key, and it can be instantly cryptographically erased (Sanitized).

Potential Drawbacks

Management Silos: Managing encryption keys across thousands of individual drives from different vendors can become complex without a centralized Key Management Server (KMS) supporting the KMIP protocol.
No Storage Pooling Benefits: You lose the ability to perform global deduplication or compression across different drives before the data is encrypted, as encrypted data cannot be compressed or deduplicated.

Key Differences: Head-to-Head Comparison

To understand how these technologies perform under real-world conditions, we must compare them across three critical pillars.

1. Performance and Latency

Native bare-metal encryption is the undisputed winner for raw performance. Because encryption occurs in-line on the drive ASIC, there is no added latency.

Hardware-assisted virtualization, while fast due to DPU/SmartNIC offloading, still requires data to pass through a virtual switch or storage hypervisor, adding microseconds to the I/O path.

2. Security and Threat Model

Virtualization Layer: Encryption keys are typically stored in a centralized key manager and loaded into hypervisor memory. This protects against physical drive theft but leaves a vulnerability if the hypervisor host is compromised via a kernel-level exploit.
Bare-Metal SEDs: Keys never leave the drive controller's hardware security boundary. However, if the server is running and unlocked, an attacker with operating system access can still read the decrypted data.

3. Scalability and Operational Complexity

Virtualization makes scaling easy. When you add a new storage node, the virtualization layer automatically configures it, applies the encryption policy, and integrates it into the existing pool.

With bare-metal SEDs, scaling requires strict hardware compatibility checks, firmware updates, and direct integration with an enterprise Key Management System (KMS).

Comparison Table

Real-World Use Cases: When to Choose Which?

Workload Requirements
 ├─► Need high storage efficiency, VM flexibility, and mixed drive vendors?
 │    └─► Choose: Hardware-Assisted Storage Virtualization
 │
 └─► Need absolute lowest latency, high-performance DBs, and physical drive security?
      └─► Choose: Native Bare-Metal Hardware Encryption

When to Choose Hardware-Assisted Storage Virtualization

Multi-Tenant Cloud Infrastructure: When running private or public clouds where workloads frequently migrate between physical hosts (vMotion/Live Migration).
Heterogeneous Storage Environments: When your data center utilizes a mix of NVMe, SATA, and SAS drives from various manufacturers.
Storage-Constrained Environments: When you rely heavily on thin provisioning, compression, and deduplication to keep storage hardware costs down.

When to Choose Native Bare-Metal Hardware Encryption

High-Performance Databases: For bare-metal SQL, Oracle, or NoSQL databases that require sub-millisecond response times.
Edge Computing & Remote Sites: Where physical security is weak. If a server or drive is physically stolen from an edge site, the SED architecture ensures data cannot be read.
Strict Regulatory Compliance: For environments requiring strict physical-layer compliance (e.g., military, federal, or highly regulated financial institutions).

Expert Recommendations & Best Practices

Leverage DPUs for Virtualization: If you choose hardware-assisted storage virtualization, invest in modern DPUs (like NVIDIA BlueField or AMD Pensando). Offloading encryption to these cards saves precious host CPU cycles for actual VM workloads.
Implement KMIP for Bare Metal: Never manage SED keys manually. If deploying native bare-metal hardware encryption, use a centralized Key Management Interoperability Protocol (KMIP) compliant server to automate key rotation and escrow.
Avoid Double Encryption: Do not run hypervisor-level encryption on top of native SED hardware encryption. This "double encryption" yields no extra security benefits but severely degrades storage performance and increases latency.
Plan for Data Reduction: Remember that encrypted data looks like random noise. If you encrypt at the physical drive level, any deduplication or compression engine sitting above the drive will fail. Always compress and deduplicate data before it is encrypted.

Conclusion

There is no one-size-fits-all answer to storage encryption. Hardware-assisted storage virtualization offers unmatched flexibility, centralized management, and storage efficiency, making it the ideal choice for modern virtualized data
