[Blueprint] Designing Infrastructure Pipelines To Process High-Volume Patient Records

Modern healthcare systems generate massive volumes of patient data daily. Between Electronic Health Records (EHRs), high-resolution medical imaging (DICOM), IoT-enabled wearable monitors, and genomic sequencing, the sheer scale of ingestion is unprecedented.

For healthcare enterprises and digital health platforms, processing this data in real time while maintaining strict regulatory compliance is a critical engineering challenge.

This blueprint details how to design and deploy a scalable, fault-tolerant, and HIPAA-compliant healthcare data pipeline capable of processing high-volume patient records at scale.

The Challenge of High-Volume Patient Data Processing

Designing infrastructure pipelines to process high-volume patient records requires solving three core engineering challenges: data variety, processing velocity, and strict compliance.

Key Characteristics of Healthcare Data

Unstructured and Semi-Structured Formats: Unlike standard transactional databases, healthcare data arrives in highly specialized, fragmented formats. These include HL7 v2/v3 (legacy messaging), HL7 FHIR (JSON-based REST APIs), DICOM (binary imaging data), and unstructured clinical notes.
Extreme Velocity: Real-time patient monitoring systems and ICU telemetry streams demand sub-second processing and alerting capabilities to support clinical decision-making.

Compliance and Security Mandates (HIPAA, GDPR)

Every byte of Protected Health Information (PHI) must be secured under HIPAA (in the US) and GDPR (in Europe). This introduces architectural constraints:

Data Minimization: Only process and store the minimum necessary data.
Immutable Audit Trails: Every read, write, update, and deletion must be logged in a tamper-proof repository.
Strict Isolation: Multi-tenant systems must guarantee logical or physical separation of patient cohorts.

Architectural Blueprint for a Scalable Healthcare Data Pipeline

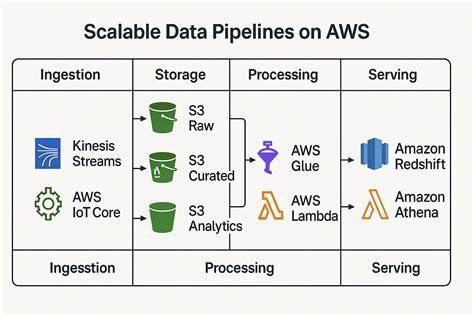

To handle high-volume patient records efficiently, we decouple the architecture into four distinct, loosely coupled layers. This modular design prevents bottlenecks and ensures the system can scale horizontally.

[ Data Sources ] ---> [ Ingestion Layer ] ---> [ Processing & Transformation ] ---> [ Storage / Lakehouse ] ---> [ Analytics & Consumption ]
(EHR, IoT, DICOM)     (Kafka / Kinesis)        (Apache Spark / Flink)            (Delta Lake / S3)             (APIs, BI, ML Models)

1. Data Ingestion Layer

The ingestion layer must act as a highly available buffer, capturing incoming streams without putting backpressure on upstream clinical systems.

Stream Ingestion: Use Apache Kafka or AWS Kinesis configured with multi-partition topics. This allows the system to ingest millions of HL7 or FHIR payloads per second.
Edge Gateways: Deploy secure API gateways (e.g., Kong, Apigee) at the cloud edge to handle authentication, rate limiting, and initial payload validation.
Hybrid Batch Ingestion: For legacy EHRs that only export data via daily batch drops, deploy secure SFTP servers that automatically trigger event-driven serverless functions (e.g., AWS Lambda) upon file upload.

2. Data Processing & Transformation Layer

Raw clinical data is rarely ready for downstream analytics. This layer sanitizes, normalizes, and enriches incoming payloads.

Raw HL7/JSON Payload
        │
        ▼
[ Schema Validation ] ──(Invalid)──> [ Dead Letter Queue (DLQ) ]
        │
        ▼ (Valid)
[ De-identification / De-duplication ]
        │
        ▼
[ Standardization to HL7 FHIR ]
        │
        ▼
Normalized Data Lakehouse Store

Validation & Parsing: Parse incoming raw formats and route malformed payloads directly to a Dead Letter Queue (DLQ) for manual inspection, preventing pipeline blockages.
Standardization (FHIR-First): Standardize all incoming records into HL7 FHIR (Fast Healthcare Interoperability Resources) format. This ensures long-term interoperability.
De-identification: Implement automated pipeline steps using Natural Language Processing (NLP) tools (like Amazon Comprehend Medical or John Snow Labs Spark NLP) to redact PHI from unstructured clinical notes before saving to non-production environments.

3. Storage & Data Lakehouse Layer

For high-volume storage, traditional relational databases become cost-prohibitive and perform poorly. A Data Lakehouse architecture (such as Delta Lake or Apache Iceberg) is the industry standard.

Object Storage Raw Zone: Store raw payloads in highly durable object storage (e.g., AWS S3, Azure Blob) with strict lifecycles (transitioning raw data to cold storage/Glacier after 30 days).
Structured Lakehouse Zone: Use Delta Lake to enable ACID transactions on top of object storage. This ensures data consistency during concurrent writes (e.g., when multiple clinics update the same patient record simultaneously).
Partitioning Strategy: Partition data by organization_id, patient_id hash, or creation_date to optimize query performance and limit scan costs.

4. Analytics & Consumption Layer

The final layer provides secure access to normalized, high-quality patient data.

FHIR Server API: Expose data to internal and external applications via a FHIR-compliant API (e.g., HAPI FHIR, Azure API for FHIR).
Downstream BI & ML: Connect business intelligence tools (Tableau, PowerBI) and machine learning pipelines (SageMaker, Databricks) directly to the structured Lakehouse zone for predictive analytics, such as readmission risk modeling.

Technical Stack Selection for Healthcare Pipelines

Choosing the right technologies is critical to balancing performance, operational overhead, and compliance.

Security, Encryption, and Access Control (Zero Trust)

When designing infrastructure pipelines to process high-volume patient records, security cannot be an afterthought. Implement a Zero Trust Architecture across the entire data flow.

Encryption at Rest and in Transit

In Transit: Enforce TLS 1.3 for all internal and external network traffic. Block any non-HTTPS/non-FTPS traffic at the firewall level.
At Rest: Encrypt all storage volumes, S3 buckets, and databases using AES-256. Implement envelope encryption using cloud Key Management Services (KMS) with customer-managed keys (CMK) that undergo automatic annual rotation.

Role-Based Access Control (RBAC) and Attribute-Based Access Control (ABAC)

Implement fine-grained access control at the database and object level:

[ User Request ] ──> [ Access Control Policy Engine ]
                           │
                           ├──> Role: Physician ──> Full Access to Medical Records
                           └──> Role: Billing   ──> Masked Clinical Data, Access to Billing Only

RBAC: Restrict pipeline infrastructure management to DevOps engineers with Multi-Factor Authentication (MFA) enabled.
ABAC: Restrict access to patient records based on metadata. For example, a clinician can only view records of patients actively assigned to their specific hospital department.

Immutable Audit Logging

To satisfy HIPAA § 164.312(b), log all pipeline actions. Use services like AWS CloudTrail, combined with specialized application-level logging, to record:

Who accessed the data.
When the data was accessed.
What specific fields were viewed or modified.
Export these audit logs to a write-once-read-many (WORM) storage bucket with object locking enabled to prevent tampering.

Ensuring High Availability, Fault Tolerance, and Disaster Recovery

Healthcare pipelines are mission-critical. Downtime can directly impact patient care.

Multi-Region Deployments and Failovers

Deploy the pipeline across at least two cloud availability zones (AZs), with an active-passive or active-active multi-region backup strategy. Use global load balancers (e.g., AWS Route 53 with latency-based or failover routing) to redirect ingestion traffic automatically if a primary region goes offline.

Data Backup and Retention Policies

Continuous Backups: Enable point-in-time recovery (PITR) for operational databases.
Cross-Region Replication: Automatically replicate the processed Data Lakehouse storage bucket to a secondary, geographically isolated region.
Disaster Recovery (DR) Testing: Run quarterly DR simulation drills to verify that the Recovery Point Objective (RPO) is under 5 minutes and the Recovery Time Objective (RTO) is under 15 minutes.

Step-by-Step Implementation Strategy

If you are building a high-volume patient data pipeline from scratch, follow this phased implementation roadmap:

Phase 1: Establish the Security Baseline

Sign Business Associate Agreements (BAAs) with cloud providers.
Set up your KMS keys, VPCs, private subnets, and IAM roles.

Phase 2: Build the Ingestion & Storage Layers

Deploy Apache Kafka or AWS Kinesis.
Configure your raw S3/Blob landing zones and set up Delta Lake tables.

Phase 3: Develop the Normalization & Parsing Engine

Write Spark/Flink streaming jobs to parse raw HL7/JSON payloads.
Map incoming data fields to the standardized HL7 FHIR schema.

Phase 4: Implement Security Controls and Audit Logs

Enable field-level encryption for sensitive PHI fields (e.g., SSN, Date of Birth).
Configure centralized logging to a locked WORM bucket.

Phase 5: Load Testing and Performance Tuning

Use synthetic patient data generators (e.g., Synthea) to simulate peak-load scenarios.
Optimize Kafka partition counts and Spark cluster auto-scaling thresholds.

Conclusion

Designing infrastructure pipelines to process high-volume patient records requires balancing performance, reliability, and security. By adopting a decoupled, event-driven streaming architecture, standardizing on HL7 FHIR, and enforcing strict Zero Trust security policies, you can build an enterprise-grade pipeline that scales to meet modern healthcare demands.

Start by building a minimal viable pipeline using synthetic data, validate your compliance controls early, and scale your compute resources horizontally as ingestion volumes grow.
