[Buyer Guide] Key Infrastructure Specifications Required For Running High-Capacity Storage Arrays

Deploying high-capacity storage arrays—whether they are enterprise All-Flash Arrays (AFAs), high-density JBODs, or hybrid NAS/SAN platforms—is a major capital investment. However, many IT organizations focus solely on drive capacities and controller speeds, overlooking the physical and environmental infrastructure required to support these systems.

Without proper planning, high-capacity storage arrays can lead to tripped breakers, thermal throttling, network bottlenecks, or even structural damage to your data center floor.

This buyer’s guide outlines the critical data center infrastructure specifications required to successfully deploy and run high-capacity storage arrays.

1. Physical Footprint: Rack Space, Weight, and Floor Loading

High-capacity storage arrays pack immense storage density into compact form factors. However, this density translates directly into concentrated physical weight.

Rack Unit (RU) Space & Depth

Modern high-density storage enclosures (such as 4U chassis holding 60 to 102 LFF 3.5-inch drives) are significantly deeper than standard compute servers.

Standard Depth Requirements: Ensure your server racks have a usable depth of at least 1000mm to 1200mm.
Cable Management Clearance: High-density arrays require heavy-duty Cable Management Arms (CMAs). You must allow an additional 100mm to 150mm of clearance at the rear of the rack to prevent cables from restricting exhaust airflow.

Weight Distribution and Floor Loading Capacity

A fully populated 4U storage array containing 102 enterprise hard drives can weigh upwards of 260 lbs (118 kg). A single standard 42U rack fully loaded with these chassis can easily exceed 2,000 lbs (907 kg).

Static Load Rating: Your server racks must be rated for the total weight of the storage arrays, switches, and PDUs. Look for racks with a static load rating of at least 3,000 lbs (1,360 kg).
Raised Floor Loading: Verify your data center's floor loading capacity. Standard raised floors are typically rated for 1,000 to 1,500 lbs per square foot (psf). Concentrated loads from heavy storage racks may require floor reinforcement plates or distribution frames to spread the weight safely across structural concrete.

| Array Type (Fully Populated) | Average Rack Units (RU) | Average Weight (lbs / kg) | Minimum Rack Depth Required | | :--- | :--- | :--- | :--- | | 2U All-Flash Array (24 x 2.5" SSDs) | 2U | 60–80 lbs (27–36 kg) | 800 mm | | 4U High-Density JBOD (60 x 3.5" HDDs)| 4U | 180–220 lbs (81–100 kg) | 1000 mm | | 4U Ultra-Density Array (102 x 3.5" HDDs)| 4U | 250–285 lbs (113–130 kg) | 1200 mm |

2. Power Requirements: Density, Redundancy, and Delivery

High-capacity storage arrays require clean, continuous, and highly redundant power. Hard disk drives (HDDs) require significant startup current (spin-up current), while All-Flash Arrays demand high sustained power for write operations and controller processing.

Power Density and Voltage

Standard 110V/120V utility power is insufficient for enterprise storage arrays. High-capacity arrays require high-voltage, single-phase or three-phase power delivery.

Voltage Specifications: Deploy 208V, 240V, or 415V power circuits. Higher voltage reduces current draw (amperage), allowing you to run more equipment per circuit and improve power supply efficiency.
Sustained Draw vs. Peak Draw: A single 4U ultra-density array can draw between 1,200W and 2,500W under peak workloads. Ensure your Power Distribution Units (PDUs) are sized for peak draw, not average running draw.

Power Redundancy and Intelligent PDUs

To prevent data corruption caused by sudden power loss, high-capacity arrays employ redundant power supply units (PSUs).

Dual-Corded (N+1 or 2N) Redundancy: Connect redundant PSUs to independent power feeds (Source A and Source B) sourced from separate Uninterruptible Power Supplies (UPS) and utility grids.
Intelligent PDUs: Use metered or switched PDUs. These allow you to monitor power consumption at the outlet level and remotely power-cycle hung storage controllers.
Inrush Current Mitigation: Ensure your storage array supports staggered drive spin-up. Spinning up 100+ HDDs simultaneously creates a massive inrush current that can instantly trip upstream circuit breakers.

3. Thermal Management: Cooling and Airflow Dynamics

Concentrated storage hardware generates substantial heat. Proper thermal management is critical to prevent thermal throttling, drive failures, and premature component degradation.

       [ Cold Aisle: Clean, Cool Air In ]
                    │
                    ▼
┌──────────────────────────────────────────┐
│   High-Capacity Storage Array (Chassis)  │
│  [Front: HDDs/SSDs] ──► [Rear: Fan Wall] │
└──────────────────────────────────────────┘
                    │
                    ▼
       [ Hot Aisle: Waste Heat Exhausted ]

Heat Dissipation (BTU/hr)

Calculate the thermal output of your storage hardware to ensure your Computer Room Air Conditioning (CRAC) units can handle the load.

Conversion Formula: $\text{Watts} \times 3.412 = \text{BTU/hr}$
Example: A storage rack drawing 10,000 Watts of power will generate 34,120 BTU/hr of heat, requiring approximately 2.8 tons of dedicated cooling capacity.

Airflow Direction and Containment

Front-to-Back Airflow: Ensure the storage array supports standard front-to-back cooling.
Aisle Containment: Implement Cold Aisle or Hot Aisle containment. High-density storage arrays should never be deployed in an open-air data center configuration where hot exhaust air can recirculate back into the intake.
Blanking Panels: Install blanking panels in all empty rack spaces to prevent bypass airflow and maintain optimal static pressure within the rack.

Environmental Operating Ranges (ASHRAE Standards)

Maintain your data center within the ASHRAE A2 to A4 recommended ranges:

Temperature: 64.4°F to 80.6°F (18°C to 27°C)
Relative Humidity: 8% to 60% (non-condensing) with a dew point limit of 41.9°F (5.5°C).

4. Network Connectivity and Bandwidth Infrastructure

A high-capacity storage array is only as good as the network pipe connecting it to your compute nodes. Bottlenecks at the physical network layer will severely limit array performance.

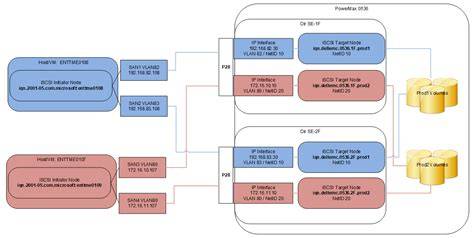

High-Speed Interface Standards

Depending on your storage architecture (SAN, NAS, or Object), you must provision the correct physical network fabric:

Ethernet (iSCSI, RoCE, NVMe-oF): Minimum 25GbE for standard workloads; 100GbE or 200GbE for high-performance All-Flash Arrays.
Fibre Channel (FC SAN): 16GFC or 32GFC host bus adapters (HBAs) and switches for low-latency, lossless block storage.
InfiniBand: Primarily used in High-Performance Computing (HPC) and AI clusters requiring NDR (400Gb/s) or HDR (200Gb/s) speeds.

Cabling and Transceiver Compatibility

Direct Attach Copper (DAC): Best for short, top-of-rack (ToR) connections (under 5 meters) due to low latency, low power consumption, and lower cost.
Active Optical Cables (AOC) / Structured Fiber: Required for runs longer than 5 meters. Ensure your data center optical patch panels support OM4 or OM5 multi-mode fiber to handle high-bandwidth optical transceivers (SR4, FR4).
Bend Radius Management: High-density fiber bundles must be installed with proper bend radius protectors to prevent signal degradation or physical fiber breakage.

5. Infrastructure Specifications Checklist

Before finalizing your purchase of a high-capacity storage array, use this checklist to verify that your target data center footprint is fully prepared:

Summary & Next Steps

Deploying high-capacity storage arrays requires close collaboration between your storage administration, network engineering, and data center facilities teams. By verifying your physical rack space, weight distribution, high-voltage power delivery, thermal cooling capacity, and high-speed network infrastructure before delivery, you can ensure a seamless deployment, maximize system uptime, and protect your hardware investment for years to come.
